Shop » Products » Residential Intercom » VoIP (SIP) based » 2N » 2N Indoor » 7 TOUCHSCREEN IP PHONE ANDROID OS BASED
1120102_D7A_IP-Phone

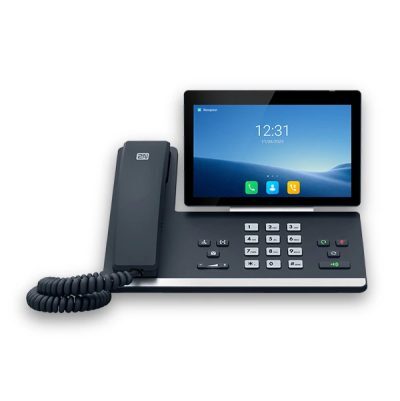

7 TOUCHSCREEN IP PHONE ANDROID OS BASED

$1,147.30

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $286.83

7 TOUCHSCREEN IP PHONE ANDROID OS BASED

Add to wishlist

SKU: AX1120105 Category:
Free Shipping for orders over $600 (AU Only)*
Brand: , ,

Description

AX1120105
POWERFUL PHONE FOR MODERN RECEPTION

Any modern building, residential or commercial, needs a smart IP phone that allows the receptionist to answer calls from the IP intercom at their front entrance. Preview the person waiting via the IP intercoms camera on the built in 7’’ touchscreen display, and open the door at the mere touch of a button. What’s more, it’s equipped with Android OS, which allows apps such as Skype or Zoom to be installed on the phone for video calling whenever needed.

You only need one UTP cable for communication and power supply. If that doesn’t work for you, you can connect the phone to the network via Wi-Fi. Setting up calls is easy, too – you can do it within 3 minutes.

Register for Member Pricing

The 2N® IP Phone D7A is not covered by free cloud calling within My2N.

Technical Parameters
Audio Features
Audio codec:Opus, G.722, G.711A, G.711U, G.729, G.726, G.723.1, iLBC
DTMF:In-band, out-of-band (RFC 2833) and SIP INFO
Video Features
Video codec:H.264 High Profile, H.264, VP8
Video quality:720P (1280×720)-30fps (equal or more than 512 kbps)
Field of view (FOV):75°±5°
Optional CAM50 Camera
Resolution:5 mega-pixels
Privacy shutter:yes
Vertical tilt angle adjustable:47±3°
Display and Indicator
Screen type:LCD
Resolution:7” 1024 x 600 capacitive adjustable touch screen
Vertical tilt angle adjustable:48°
LED:for call and message waiting indication
Phone Features
Number of SIP accounts:16
Call features:call hold, call forward, call waiting, call transfer, one-touch speed dial, hotline, mute, DND, group listening, emergency call, redial, call return, auto answer, dial plan, action URL/URI, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035), voice mail, call park, call pickup
Intercom features:preview, one-button open, monitoring
Other features:music on hold, call recording, directory, local phonebook up to 1000 entries, XML/LDAP remote phonebook, call history
Feature Keys
Number of keys:27 one-touch DSS keys
7 feature keys:hold, transfer, message, headset, mute, redial, speakerphone
Other keys:volume control, mute, headset, hands-free speakerphone key
Interface
PoE:Power over Ethernet (IEEE 802.3af), class 3
Bluetooth:4.2 for optional Bluetooth Handset BTH58, generic Bluetooth headset and paired mobile devices
USB ports:2 (one USB 2.0 port on the top of the phone for the optional CAM50 camera, one USB 2.0 port on the rear of the phone for USB flash drive or USB headset)
RJ9 (4P4C):2 (one RJ9 handset port, one RJ9 headset port)
Extender support:supports up to 3 colour-screen extender EXP50 modules (Order No. 91378363)
Management
Configuration:web browser/local phone UI/auto provision
Auto provision:via FTP/TFTP/HTTP/HTTPS
Network and Security
Ethernet:dual-port Gigabit
Wi-Fi:IEEE802.11a/b/g/n, 2.4GHz/5.0GHz
Internet protocol version:IPv4/IPv6
Signalling protocol:SIP v1 (RFC2543), v2 (RFC3261)
Call possibilities:proxy mode and peer-to-peer SIP link mode
QoS:802.1p/Q tagging (VLAN), SRTP
Encryption:TLS1.3
VPN:OpenVPN, IEEE802.1X, L2TP VPN
Other Technical Parameters
External AC adapter:optional (DC 5V/2A output)
Power consumption:2.5W~7.6W
Dimensions (WxDxH):10,21 inch x 8,66 inch x 8,46 inch
Package content:2N® IP Phone D7A, wired handset with cord, ethernet cable, desk stand, quick start guide
Wall mountable:optional (with wall mount bracket, Order No. 02530-001)

Technical Documents

Download documents from the following links:

2N IP Phone D7A user manual US

2n_ip_phone_d7a_quick_guide

ip-phone_d7a_datasheet_letter_us_LQ
