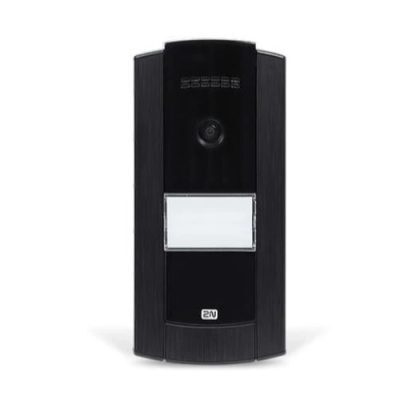

2N® IP Base with camera, black frame

2N® IP Base with camera, black frame

$1,358.50

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $339.63

2N® IP Base is a compact IP intercom with a simple and fast installation.

Add to wishlist

SKU: AX9156111CB Category: Tags: , , ,
Free Shipping for orders over $600 (AU Only)*
Brand: ,

Description

2N® IP Base is a compact IP intercom with a simple and fast installation. It is fitted out with one or two buttons and brings high quality audio and video. The intercom is designed especially for smaller scale installations.

  • A compact IP intercom with HD camera
  • Very easy to install
  • RFID card reader

A COMPACT IP INTERCOM WITH HD CAMERA
A stylish IP intercom with high-quality audio and video.

VERY EASY TO INSTALL
The mechanical and software installation of the 2N® IP Base intercom is very fast and intuitive. You will save not only time, but also installation costs.

Register for Member Pricing

RFID CARD READER
The basic model can be extended with a 125 kHz or 13.56 MHz RFID card reader module.

HIGH-QUALITY AUDIO AND VIDEO
Thanks to its integrated HD camera and advanced sound processing with echo-cancellation the intercom provides sharp image and provides excellent audibility in all conditions.

SURFACE-ONLY INSTALLATION
Being surface mounted, it saves you the cost and time of building work.

Register for Member Pricing

TAMPER SWITCH
The intercom is equipped with integrated tamper switch that detects unauthorized device intrusions.

READY FOR CONNECTING ADDITIONAL EQUIPMENT
The intercom also has inputs and outputs ready for connecting an electric lock or other equipment.

ONE OR TWO-BUTTON OPTIONS
You can choose whether to deploy it with one or two buttons, both options are included.

Register for Member Pricing

DURABLE ALUMINIUM FRAME
High durability is ensured by certified compliance with the intrusion protection standards IP65 and IK7.

Specifications

Description9156111CB
Signalling ProtocolSIP 2.0 (RFC – 3261)
Buttons1 or 2 (the pack holds transparent plastic buttons for both 1 or 2 button options)
MicrophoneBuilt-in microphone
Speaker2W
Sound Pressure at 1kHz at 1m Distance78 dB
HD Camera Resolution1280 x 960
Viewing Angle135 degrees horizontal to 109 degrees vertical
Audio Stream CodecG 711, G 722
Video stream CodecH.263+, H.263, H.264 only for VoIP calls, MJPEG for http streaming
InterfacesPoE 802.3af LAN connector
RFID ReaderRFID card reader 13.56 MHz and 125 kHz, connector for expansion module (RFID reader)
IN1 input terminalPassive/Active mode (-30v to +30v DC) OFF = open contact or UIN > 1.5v ON = closed contact or UIN < 1.5v
Relay Output30v/1A AC/DC, output NO/NC
Active Switch Qutput8 ~ 12v DC depending on Power supply (PoE: 10 V; adapter: source voltage minus 2 V), max 400 mA
Input for external power supply12v/2A DC
Operating temperature-40 to 55 degrees C
Operating relative humidity10% ~ 95% (non-condensing)
Ingress ProtectionIP65, IK7
Dimensions109(W) x 229(H) x 31(D)mm
Weight (Net)1.00kg
Weight (Gross)1.30kg

Video

Documents

Download the documents from the links below.

 Brochure

 Installation Manual – 2N IP Base

 Configuration Manual – 2N IP Base

Integration

2N Intercoms are famous for their ability to integrate with a wide range of different equipment types and applications.  This list is the most common and only represents a small percentage of systems that are proven to interoperate.  A full list is accessable from the link below.

PBX Systems

LogoTested PBXTested VersionInterop
3CX Phone SystemAll Versions(tick)
Alcatel – Lucent OmniPCXOffice5, 6(tick)
Alcatel – Lucent OmniPCXEnterpriseR9.0 h130142(tick)
Asterisk13.8-cert4(tick)
Aura Comm. Manager / Session managerR6.2(tick)
IP Office7.0, 8.0(tick)
IP Office IP 500 V29.0.5.0 build 972(tick)

BroadsoftR17.0, R22.0(tick)
Cisco Call Manager Express4, 7, 8, 9(tick)
Cisco Unified Communications Manager (CallManager)6, 7, 8, 9, 11, 12(tick)
Cisco UC 320W(tick)
Cisco UC 54012.4(tick)
Cisco BE3000(tick)
Cisco BE6000(tick)

Ericsson-LG iPecs LIKv6.0Bo and v6.0Cv(tick)
FreePBX(tick)

Freeswitch1.6.13(tick)
FRITZ!Box 74906.50(tick)
Gigaset T300 PRO(tick)

Kamailio SIP server4.4(tick)
Panasonic NS1000(tick)
Samsung OfficeServ 7000 seriesV4.60b(tick)
Siemens HiPath 3000 V8(tick)
Siemens HiPath 4000 V6(tick)
Siemens OpenStage Gate View(tick)

Skype for BusinessServer: 2015 6.0.9319.259(green star)
Toshiba IPedgeTGZ1.6 0.27 and above(tick)
Toshiba CIXMT069 and above(tick)

Used Symbols

(tick) – Verified with video

(green star) – Verified with audio only

Home and Building Automation

LogoTestedVersionInterop
Control4Composer 2.7.0, Drivers: 2N IP intercom (version 1.10.3.e), Recluse AV HTTP Command Driver(tick)
T3 Series7″ and 10″ In-Wall Touch Screens, 7″ Portable(tick)
Touch Screen (V2)7″ Portable(tick)
InfinityEdge (V1)

Only audio works

5″ and 7″(warning)
Crestron(tick)

ELAN(tick)
HC21.5.2(tick)
Omni Automation Controller3.9 or higher(tick)
OmniTouch71.8 or higher(tick)

RTI Touch Panel KX101.1.10 (KX10)(tick)

Savant SIS-5000(tick)
Savant DOR-xxx-xx(tick)

Thinknx(tick)

Used Symbols

(tick) – Compatible

(warning) – Work with limitation

A full list of interoperability and documentation can be found here: https://wiki.2n.cz/hip/inte/latest/en
