Shop » Products » Residential Intercom » VoIP (SIP) based » 2N » 2N IP Verso » 2N Verso Modules » IP Verso RFID / Keypad / Bluetooth 125KHZ 13.56MHZ NFC PICARD Secured
AX91550947

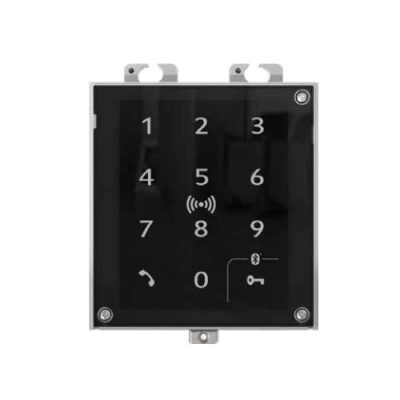

IP Verso RFID / Keypad / Bluetooth 125KHZ 13.56MHZ NFC PICARD Secured

$1,471.80

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $367.95

IP VERSO READER RFID KEYPAD BLUETOOTH RFID 125KHZ 13.56MHZ NFC PICARD SECURED

Available on back-order

SKU: AX91550947-S Category: Tags: ,
Free Shipping for orders over $600 (AU Only)*
Brand: , ,

Description

AX91550947-S
Touch keypad Bluetooth & RFID Secured

Complete your project and give residents maximum flexibility and more security. This module combines three access technologies in a single device – meaning you can supplement cutting-edge mobile access powered by WaveKey with a backup PIN code or combine them for two-factor authentication should the project require it. Traditionalists can still use RFID cards or key fobs and this reader also reads secure access credentials using 2N® PICard technology.

Features

Technical Parameters

Touch Keypad
Technology:capacitive touch layer (sensitivity 0,1 pF)
Reliability:regular automatic calibration (SmartSence Auto-tunning)
does not detect false touches on wet surface
Signalling:configurable backlight intensity
indication using multicoloured LEDs
acoustic response for every keypad touch
Bluetooth Reader
Version:compatible with Bluetooth 5.0 (BLE)
Range:(short – typically up to 3m*, long – typically up to 10m*)
*distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
Security:RSA-1024 and AES-128 encryption
RX sensitivity:up to -93 dBm
Mode:touch, tap in app, card
Mobile Application Support
Android 6.0 and higher, iOS 12.0 and higher
RFID Card Reader
Supported frequencies:125 kHz variant
13.56 MHz variant
125 kHz and 13.56 MHz variant
Supported card types:card type compatibility depends on Order No.
125 kHz:EM4xxx
HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz:ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key)
reads UID (CSN) and secured MIFARE® DESFire® EV2/EV3 cards using 2N® PICard technology
Secured 13.56 MHz:ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key), HID SE (Seos, iClass, MIFARE SE)
reads secured MIFARE® DESFire® EV2/EV3 cards using 2N® PICard technology
reads PACs ID (HID iClass cards with SIO object
Register for Member Pricing

Technical Documents

Download documents from the following links:

2N Datasheet IP-LTE-Verso
