SIP 10″ High Performance Touch Screen in White (Android 9.0). Wifi + BT – 1MP CAM.

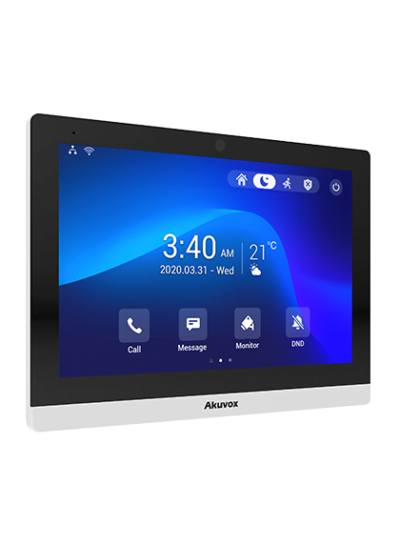

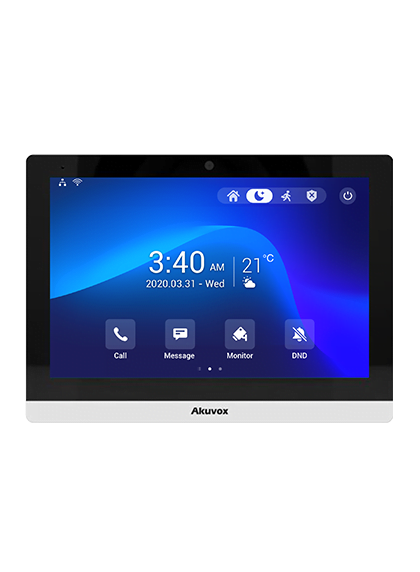

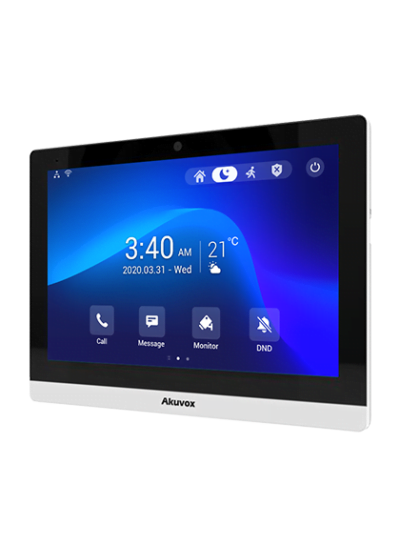

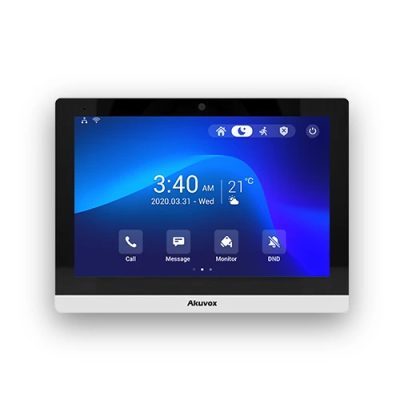

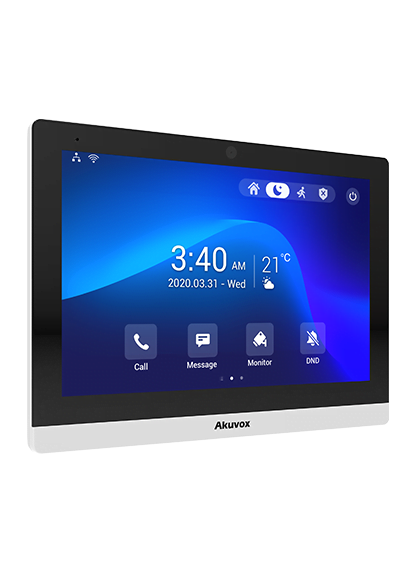

Akuvox C319A – Smart Indoor Monitor for Residents of All Ages

The Akuvox C319A multifunctional communicator, with an Android 9.0 operating system, provides audio and video communication with door phones via SIP 2.0 protocol. Akuvox C319 is a 10″ Android indoor monitor with smart intercom features for people of all ages, an intuitive UI that even kids learn to use quickly, the capability of integrating telecare pendants for older individuals, and a built-in voice assistant for young people.

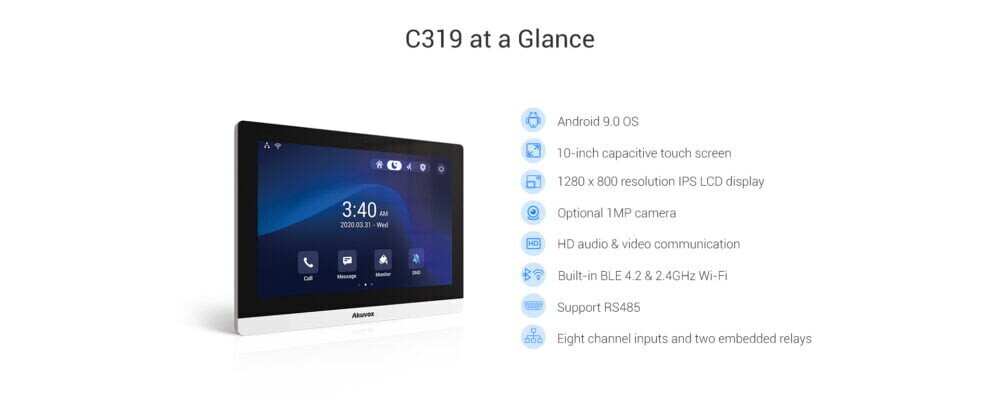

Akuvox C319A At a Glance:

Physical and Power

• Frontpanel: Plastic
• RAM/ROM :2GB/8GB
• Display: 10 Inch IPS LCD
• Screen: 10 Inch capacitive touch screen
• Wi-Fi: IEEE 802.11b/g/n, @2.4GHz
• Bluetooth: BLE4.2
• Camera: 1MP camera, CMOS
• Memory slot: 1 Micro SD slot
• RS485 port: Support
• Relays out: 2
• Bell in: 1
• IO: 8 (alarm Sensors)
• Microphone: -26dB
• Speaker: Dual speakers, 4? / 3W
• Ethernet ports: 1xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC connector (if not using PoE)
• Tamper resistant: Support
• Installation: Wall-mounted & Desktop
• Dimension: 251×182.5×29.75mm
• Working Humidity: 10~90%
• Working Temperature: -10°C~ +45°C
• Storage Temperature: -20°C~ +70°C

Touch Screen Display

• Display Mode: Normally black, transmissive
• LCD Size: 10 inch diagonal
• Aspect Ratio: 16:10
• Resolution: 1280×800
• Luminance: 350nits (cd/m²)
• Contrast: 900:1
• Viewing Angle: ±80° horizontal, ±80° vertical
• Touch Screen: Projected Capacitive

Video

• Streaming Formats: H.263 & H.264

Audio

• SIPv1(RFC2543),SIPv2(RFC3261)
• Narrowband audio codec: G.711a, G.711u, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF(RFC2833), SIPInfo
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Automatic Gain Control

Voice Assistant

• Voice pickup distance up to 5 meters
• Voice recognition accuracy up to 95%
• Privacy Protection with native voice data

Akuvox C319A Application Scenario
