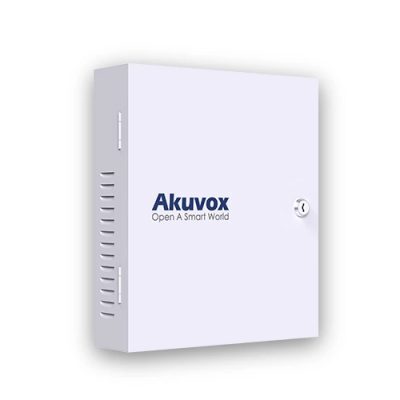

Akuvox EC33 Elevator Controller

Login, Register, or Call for Price

Akuvox E32C Elevator Controller

SKU: AK-EC33 Category: Akuvox Tag: Akuvox

Free Shipping for orders over $600 (AU Only)*

Description

The Akuvox EC33 elevator controller is a TCP/IP device with 32 outputs expandable to 64 outputs with an expansion panel.

The controller stores up to 20,000 cards and connects to card readers using wiegand 26/ 34 protocol.

Akuvox intercoms work with the elevator controller through http commands.

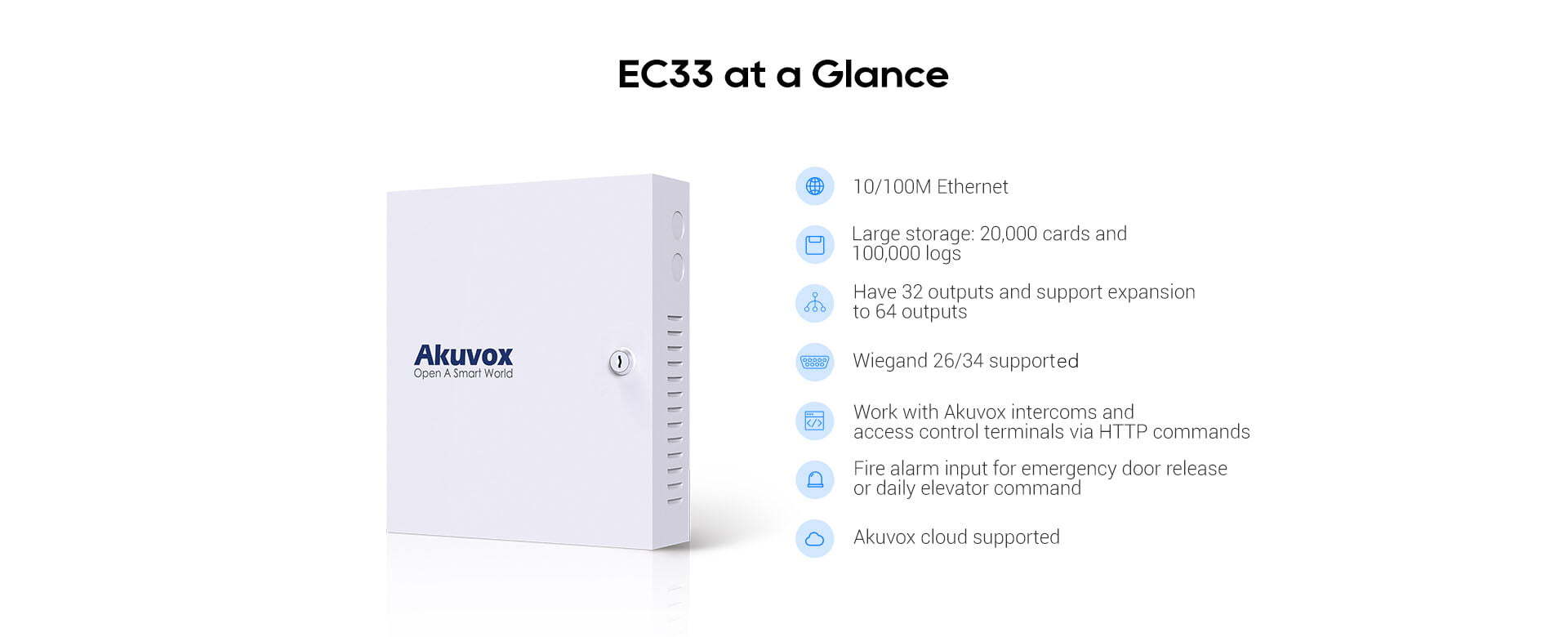

At a Glance:

Standard 10/100M TCP/IP communication
Big capacity flash chip, 20,000 card holders and 100,000 records
Each panel support 32 outputs and can connect a expansion panel to reach 64 outputs
One RS485 port for connecting expansion panel
Support emergency door release input to realize fire alarm linkage or elevator’s normal usage if emergency
Support 1 wiegand reader with wiegand 26/34 protocol
Support working with Akuvox intercom devices by HTTP mode

Physical & Power:

Communication

TCP/IP

RS485

Yes

Users

20,000

Events

100,000

Relays out

Wiegand port

1 x Wiegand 26/34

RJ45 port

Fire alarm input

Working voltage

12V

Rated power

? 5W

Data protection if no power supply

10 Years

Working temperature

< 60°C

Working humidity

10% ~ 90%

Panel dimensions

218 x 136 x 32 (mm)

Panel weight

450g

Download documents from the following links:

Akuvox EC33 Datasheet
