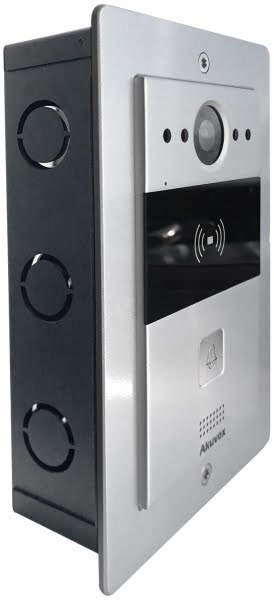

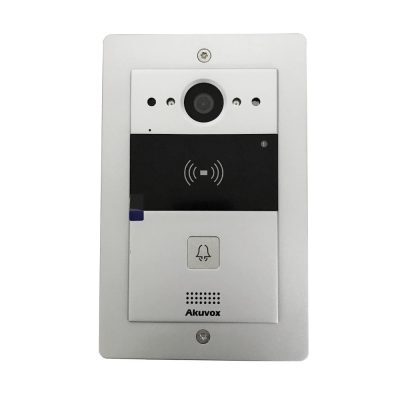

Akuvox R20A Compact IP Video Intercom - In Wall Mount

Akuvox R20A Compact IP Video Intercom – In Wall Mount

$548.90

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $137.23

Compact Video SIP door intercom with:

  • 2 Relays
  • 2 Video Channels Live Stream and Intercom
  • 3MP Camera
  • Access Card Reader 13.56MHz & 125KHz
  • PBX, Peer to Peer or Hosted Server.
  • PoE
  • Tamper Alarm
  • Motion Detection
  • Call/Door Log
  • 120° FOV
  • In-Wall (Flush) Mount

Available on back-order

Akuvox SmartPlus Cloud Service - Single residence 4 Smartphone Account

Akuvox SmartPlus Cloud Service - Single residence 4 Smartphone Account

Akuvox SmartPlus Cloud service account for single residence with 4 App accounts. One time payment

R20A Rain Cover - In Wall

Rain cover for R20A Flush Mounted Intercom
Add to wishlist

SKU: AK-R20A-INWALL Category: Tags: , , , , , , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

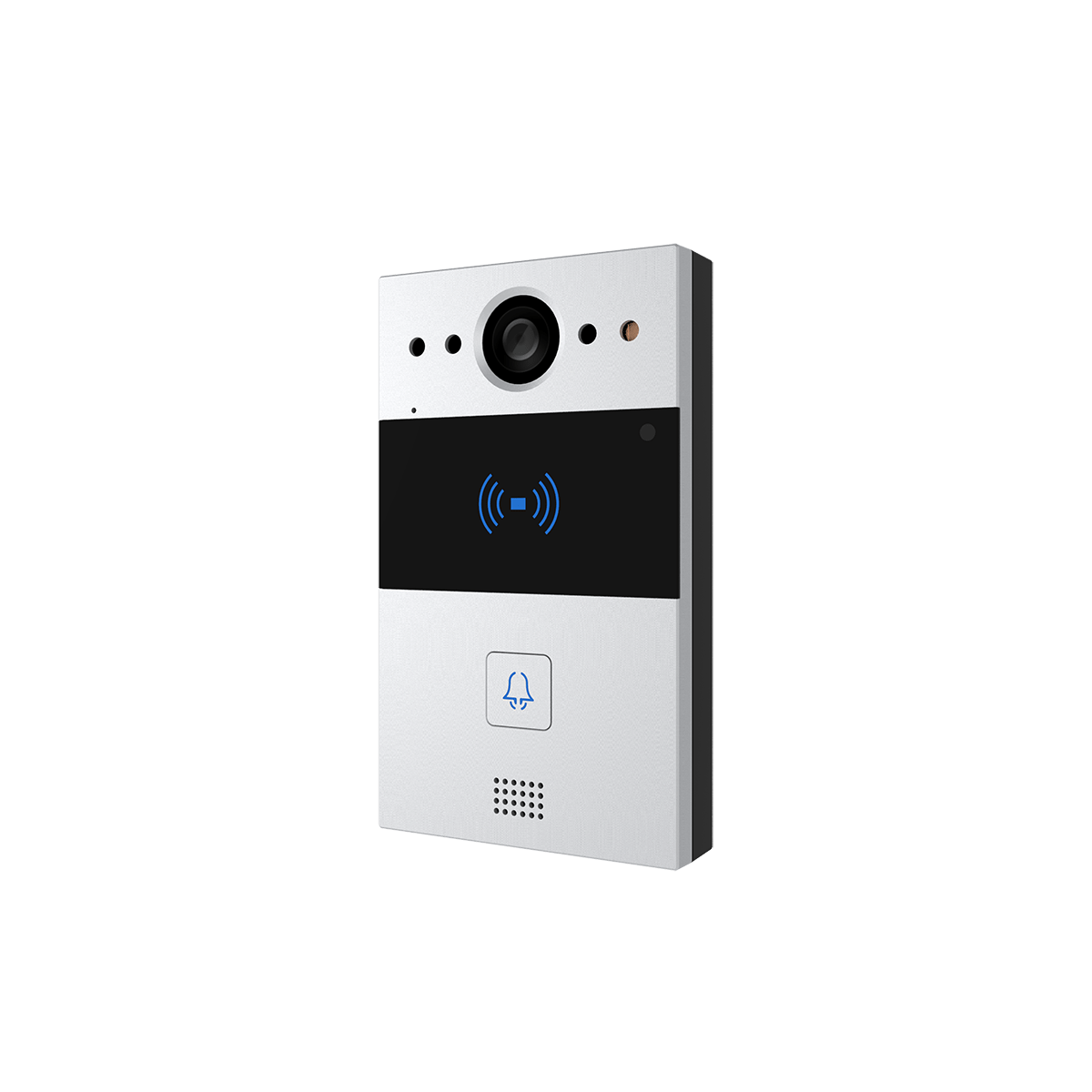

R20A – VoIP (SIP) Compact Video Door Station with 3MP Camera, Card Reader, 2 relays, PoE, IP65, with Surface Mount and Flush Mount options.

R20A is a fashionable, SIP-enabled IP video door phone with 3MP camera (2 video channels – intercom and live stream), and card reader. It enables easy monitoring of an entrance area and convenient entry control.

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox’s Video Doorphone R20A enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

Now available with a rotatable mount for surface mount model.  This mount allows you to angle the intercom on the wall to better cover the entrance way.  Please select the surface mount rotatable option.

Register for Member Pricing

Rain covers are also available for the R20A.

At a Glance

  • Wide-angle camera: Horizontal 120º, Vertical 65 º
  • PoE (IEEE802.3af, Power-over-Ethernet);
  • Two-way audio communication over IP networks with Echo Cancel feature;
  • Complies with SIP standard for easy integration in every SIP capable PBXes;
  • Complies with ONVIF standard for easy integration with any network surveillance system;

Specifications

Physical & Power


Body material
Aluminum alloy

Camera
3MP, auto lighting

Button
1 call button

G-sensor
Support

Infrared Sensor
Support

RS485
Support

RF Card Reader
13.56MHz & 125kHz

Output Relay
2 output relays for door opener

Power
Power-over-Ethernet or 12VDC

Water-proof & Dust-proof
IP65

Installation
Flush and surface mounting (choose before purchase)

Dimension
85x145x27.5mm

Networking

Register for Member Pricing

Ports
1×10/100 Mbps Ethernet port

Protocols support
IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

SIP Endpoint


SIP Version
SIP v1(RFC2543), SIP v2(RFC3261)

Lines
1 SIP Account

Audio codecs
G.711a, G.711u, G.722, G.729

Video codecs
H.264

Other Features:
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Door opener via DTMF post-dial

Application Scenarios:
Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Residential intercom with door access control

Video


Resolution
up to 720p

Maximum image transfer rate
720p – 30fps

IR Light
High intensity LEDs for picture lighting during dark hours with internal light sensor

Compatibility
Compatible to 3rdPartyVideo components, e.g. NVRs

Door Entry Features

  • Relays controlled individually by DTMF tones
  • Camera permanently operational
  • White balance: auto
  • Auto-night mode with LED illumination
  • Minimum illumination: 0.1LUX
Register for Member Pricing

Application Scenarios

  • Office door phone with on-site or hosted IP-PBX
  • Remote site entry over Internet
  • Apartment / flat intercom with door access control
  • Business information or a welcome experience for guests



Register for Member Pricing



Data Sheet

Download the Data Sheet from the link below.

 Brochure

User Manual

Download the user manual from the link below.

   User’s Manual
