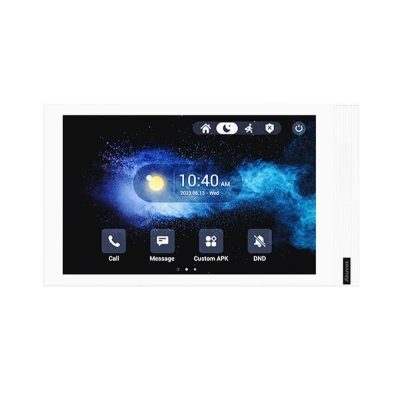

Akuvox S567 SIP 10″ Touch Screen, HD Audio, White (Android 12).

Login, Register, or Call for Price

Akuvox S567 Luxury Smart 10″ Indoor Monitor with Quad Speaker audio, and Android 12 in White.

10 inch Android 12 touch screen display. Works as indoor monitor, provides audio & video communication with Door intercoms via SIP 2.0 Protocol.

Android 12 OS
No WiFi on this version
Two-way audio communication with other units in the network
Complies with SIP standard for easy integration in every SIP capable PBXes
Powered by PoE or external source
Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
Support Voice Changer to protect the children and women living alone
Support US or European electrical wall box mounting
Built-in smart voice assistant

Free Shipping for orders over $600 (AU Only)*

Brand: Akuvox

Description

Akuvox S567 – High performance white touch screen for your home with Quad Speaker design

The Akuvox S567 multifunctional communicator in white, with an Android 12 operating system, provides HD audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 10-inch capacitive touch screen display. Play music or video with HiFi sound through the quad speaker system.

Akuvox S567 At a Glance:

Android 12 OS
No WiFi on this version
Two-way audio communication with other units in the network
Complies with SIP standard for easy integration in every SIP capable PBXes
Powered by PoE or external source
Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
Support Voice Changer to protect the children and women living alone
Support US or European electrical wall box mounting
Built-in smart voice assistant
Colour: white

Physical & Power

Front panel: Plastic

RAM / ROM: 2GB / 8GB

Display: 10 Inch IPS LCD

Screen: 10 Inch capacitive touch screen

RS485 Port: Support

Relays Out: 1

Bell in: 1

Alarm Input?8

Microphone: Dual microphones,-26dB

Speaker: Quad speakers, 8? / 2W

Ethernet Ports: 1xRJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC Connector (if not using PoE)

Tamper Resistant: Support

Installation: Wall-mounted & Desktop

Dimension: 278×165.1×22.8 mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C

Touch Screen Display

Display Mode: Normally black, Transmissive

LCD Size: 10inch (Diagonal)

Aspect Ratio: 16:10

Resolution: 1280×800

Contrast ratio: 900:1

Luminance: 290 cd/m²

Viewing Angle: 80° Left, 80° Right,

80° Upper, 80° Lower

Touch Screen: Projected capacitive

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711?, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Automatic Gain Control

Video

Streaming formats: H.263 & H.264

Networking

Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)

Voice Assistant

Voice pickup distance up to 5 meters

Voice recognition accuracy up to 95%

Privacy protection with native voice data

Support English

Application Scenario

Villas

Apartment complexes

Home automation systems

Modern interiors

Download the brochure from the link below.

Akuvox S567 Datasheet V3.0
