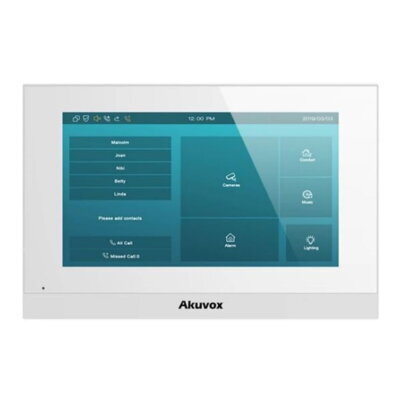

Akuvox SIP 7″ touch video intercom monitor with WiFi- C313W-WHITE

The Akuvox C313W-W is a low cost 7″ Linux based touch screen monitor for use with Akuvox SIP video intercom door stations.  It also includes an 8 zone security system for added securty in your home.  You can view IP cameras and the door station from the touch interface.  Call other intercom monitors for a room to room voice intercom system. Powered by PoE or external power for an easy installation.  Connect with WiFi or through standard ethernet port.

The C313W-W multifunctional communicator, which works as an indoor monitor, provides audio and video communication with Door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.  It also has an energy saving mode

Touch Screen Display
Display Type:  7 Inch TFT LCD
Size: 7 inch
Aspect Ratio: 16:9
Resolution: 800×480
Brightness: 220nits (cd/m²)
Contrast: 500:1
Viewing Angle: ±50° horizontal, ±50° vertical
Touch Screen: Projected Capacitive

Video
Streaming Formats: H.264

Audio
Features: Built-in microphone and speaker

Memory
RAM: 64MB
Flash: 128MB

Interface
Ethernet: 2×10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
Relay Out: 1x relay out (NO/COM/NC)
Alarm In: 8x alarm input terminals
Bell In: 1x bell input terminal
RS485: 1x RS485 communication port

Environmental
Temperature: -10° to 45°C
Humidity: 10% to 90% (non-condensing)

Mechanical parameters
Dimensions (W x H x D): 200.2 x 132.2 x 27.2mm

Application Scenario
