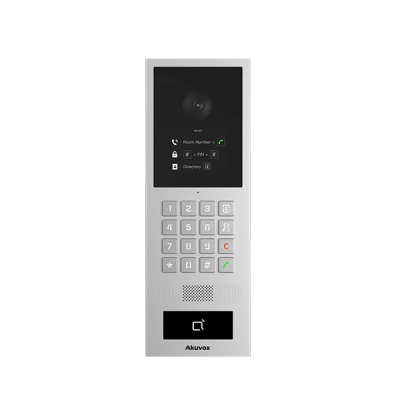

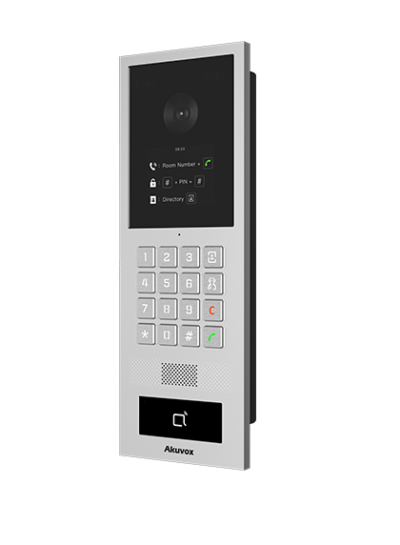

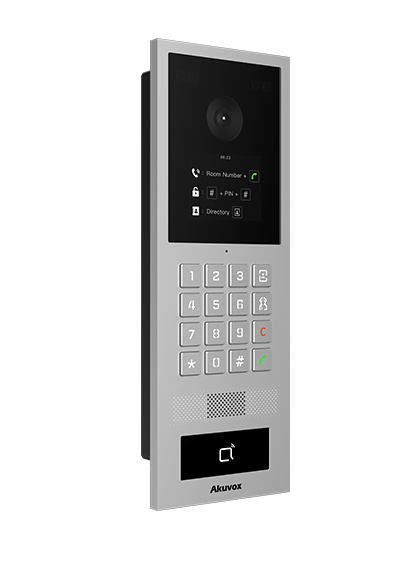

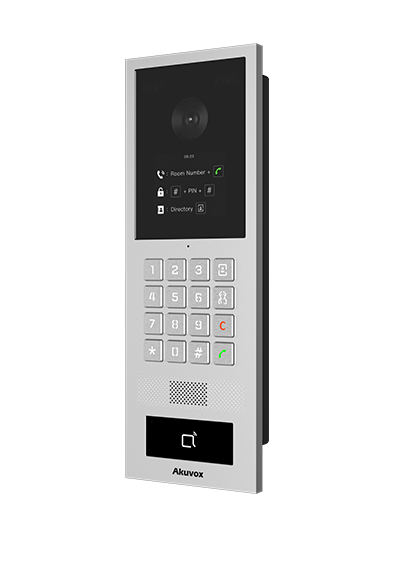

Retrofitting-Friendly Smart Video Door Phone S532

AK-S532

Akuvox S532 SIP Video Door Phone with A Seamless Fusion of Analog and IP Technologies.

Akuvox S532 Smart IP intercom is housed in a robust IK08-rated surround making it ideal for public access and higher-risk locations. It provides a combination of contactless and conventional keypad access authentication options ideal for all user ability types.

Features

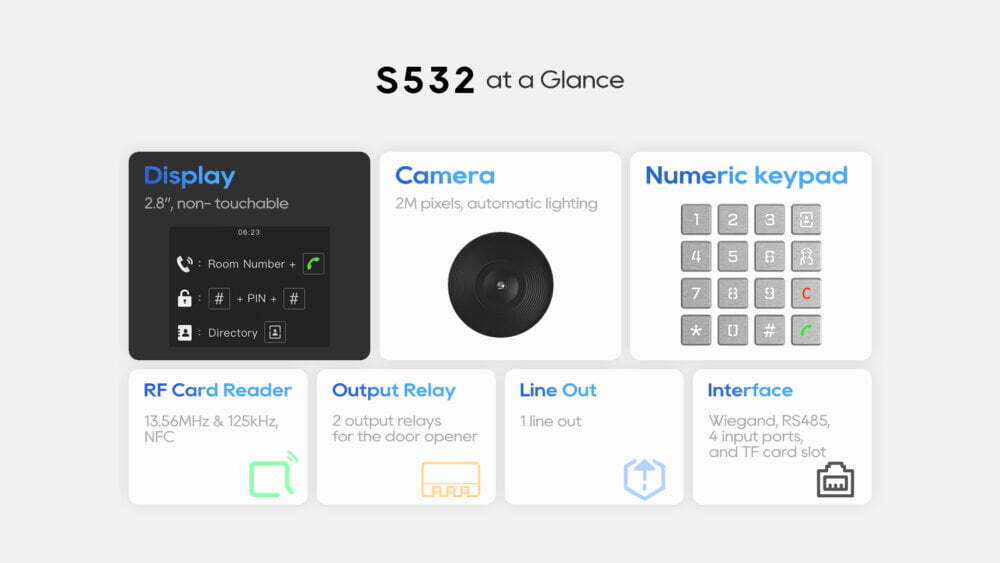

S532 Specification

• Physical & Power

  Front panel: Aluminum

  Camera: 2M pixels, automatic lighting

  Display: 2.8 Inch

  Numeric keypad with extra buttons

  Light sensor: Support

  Motion sensor: Support

  Wiegand port: Support

  RS485 port: Support

  Line out: Support

  BLE: Support

  RF card reader: 13.56MHz & 125kHz, NFC

  Relays out: 2

  Inputs: 4

  Analog audio output: Support

  Microphone: 1

  Speaker: 1

  TF card slot: 1

  Reset: Support

  Tamper Alarm?Support

  Ethernet port: RJ45, 10/100Mbps adaptive

  802.3at Power-over-Ethernet

  IP Rating: IP66

  IK Rating: IK08

  Installation: Flush-mounted & Wall-mounted

  Size: 310x106x37.8mm

  Working Humidity: 10~90%

  Working Temperature: -40°C ~ +60°C

  Storage Temperature: -40°C ~ +70°C

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711?

  Broadband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

• Video

  Sensor: 1/2.8”, CMOS

  Pixels: CIF, VGA, 4CIF, 720p, 1080p

  Video codec: H.264

  Video resolution: up to 1920x1080p

  Max. image transfer rate: 1080p – 30fps

  Viewing angle: 130°(H) / 90°(V)

  High intensity IR LEDs for picture lighting during dark hours with internal light sensor

  Compatible to 3rd-Party-Video components,

  e.g. NVRs

• Door Entry Feature

  Relays controlled individually by DTMF tones

  Camera permanently operational

  Auto-night mode with LED illumination

  White balance: auto

  Minimum illumination: 0.1LUX

• Networking & Protocol

  Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Entry log export

  Access table export / import

  Firmware upgrade

  System logs (include door access logs)

• Application Scenario

  Office door phone with on-site or hosted IP-PBX

  Remote site entry over Internet
