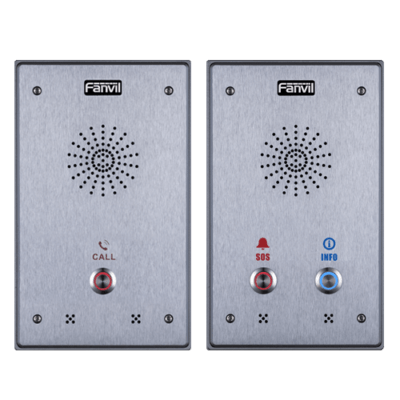

Fanvil i12d SIP Audio Intercom

Select Product Option

Rugged audio only SIP door station with single or dual buttons, multiple SIP lines and powered by POE

Free Shipping for orders over $600 (AU Only)*

Brand: Fanvil

Description

SIP Audio Door Station with single or dual call buttons

Generic

2 SIP Lines
POE Enabled
Full-duplex speakerphone
Intelligent DSS Keys (Speed Dial)
Wall-mount installation
2 embedded short-circuit input interfaces
2 embedded short-circuit output interfaces. Support 4
controlled events: remote DTMF; remote server’s
commands; interaction with short circuit input; talking
status
Output interface for active speaker
Audio record output interface
External Power Supply
Multicast
All in ONE: door access, intercom and paging service
Industrial standard certifications: IP65, IK10, CE/FCC

Call Features

Intercom
Speed Dial
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference

Intercom Features

Call log (900 entries, in/out/missed)
Programmable DSS/Soft keys
Network Time Synchronization
Action URL / Active URI

Audio

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Omnidirectional pickup: pickup distance 5 m

Networking

Physical: RJ45 Ethernet Jacket x2: Network x1(802.3AF POE Enabled), LAN x1 (Bridged to Network)
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
Web Management Portal
Web-based Packet Dump
Configuration Backup/Restore
Firmware Upgrade
Syslog (include Open Door Log)

Physical Specifications

Hands-free 1 or 2 DSS Keys (Speed dial)
Rj45 Ethernet Jacket x2: Network x1 (802.3AF POE
enabled), LAN x1 (Bridged to network
Main chipset: Broadcom
Passive switch(short-circuit output): normally open and
normally closed highest at 30V/1A AC/DC
Output interface for active speaker
Audio record output interface
2 embedded short-circuit input interfaces/2 embedded
short-circuit output interfaces
Speaker: 3W/4?
Cables: CAT5 or better
Power supply 10-14V/1.5A DC or PoE
Shell material: Aluminum cover and back case
Protection level: IP65 and IK10
Working temperature:-40~70 degrees
Storage temperature:-40~70 degrees
Working humidity: 10~90%
Overall dimension: 195x120x39mm (W x H x L)
Package dimensions: 260x165x62mm (W x H x L)
Package weight: 0.85KG
