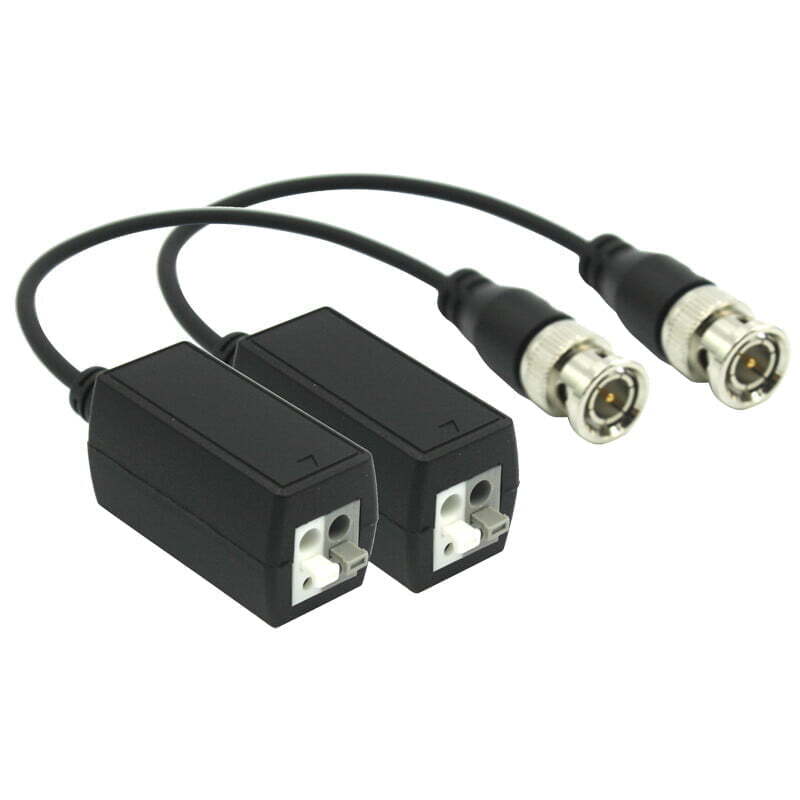

Passive HDCVI/Analogue Balun Pair

Name: Passive HDCVI/Analogue Balun Pair
Brand: VIP Vision
SKU: VSBALHDP
Price: 10.54 AUD
Availability: InStock

Original price was: $19.00.Current price is: $11.59.

(Guest - Inc. GST)

4 Interest Free Payments of $2.90

SKU: VSBALHDP Category: Converters, Baluns, and Surge Protection

Free Shipping for orders over $600 (AU Only)*

Brand: VIP Vision

Description

The VSBALHDP allows installer to minimise the cost of wiring for surveillance camera installations by using network cabling such as CAT6 or CAT5e instead of Coax Cable. Video transmission range from up to 100m (at 4K Ultra HD), 250m (at 1080p), 200m (at 4.0MP) or 400m (at 720p).

Specification

Anti-Interference

?60db

BNC Male

75 ohms

Category Type

UTP CAT 5E/6 (R?10?/100M)

Coaxial Cable Connector

2KV(common-code) Per:IEC61000-4-5

Coaxial Video Connector

BNC-M

Compatible Format

HDCVI

Dimensions

53mm*20mm*17mm (L*W*H)

ESD

1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per:IEC61000-4-2

MTBF

?10000H

Operating Humidity

0~95%(non-condensing)

Operating Temperature

-10~55?

Resolution

720p/1080p/4.0MP/4K

Storage Temperature

-20~70?

Transmission Distance

720p: 400M (max) , 1080p: 250M (max), 4.0MP: 200M (max), 4K: 100M (max)

Transmission Signal

1 channel

Twisted-pair Video Connector

Push-terminal

UTP Cable

100 ohms

UTP Cable Connector

2KV(different-code),4KV(common-code),Per:IEC61000-4-5

Documents

Download documents from the following links:

VSBALHDP Product Brochure (PDF)
