UTC Video Output Controller - VSSELECT101

Sale!

UTC Video Output Controller

Name: UTC Video Output Controller
Brand: SECURVIEW
SKU: VSSELECT101
Availability: InStock

Original price was: $39.00.Current price is: $27.78.

4 Interest Free Payments of $6.95

SKU: VSSELECT101 Categories: HDCVI CCTV, Tools and Test Equipment Tags: AHD, Analogue, hdcvi, tools, TVI

Free Shipping for orders over $600 (AU Only)*

Brand: SECURVIEW

Description

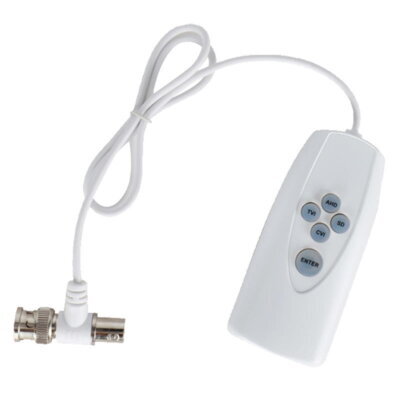

The VSSELECT101 UTC Video Output Controller changes the video output format of coaxial cameras to HDCVI, TVI, AHD or Analogue. This allows you to configure camera video outputs by simply connecting the VSSELECT101 and pushing a button, saving the hassle of setting up a DVR and monitor for configuration.

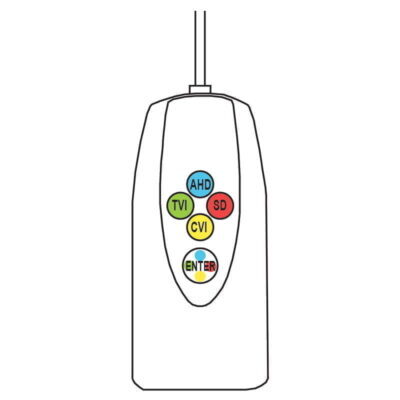

When pressed, the Enter button conveniently lights up to show the current video output of the connected camera.

Features
• Supports HDCVI/TVI/AHD/Analogue configuration
• Simple plug-and-play functionality
• Indicator lights show current video output format
• 560mm cable length
• 2 x AAA battery powered

Specifications

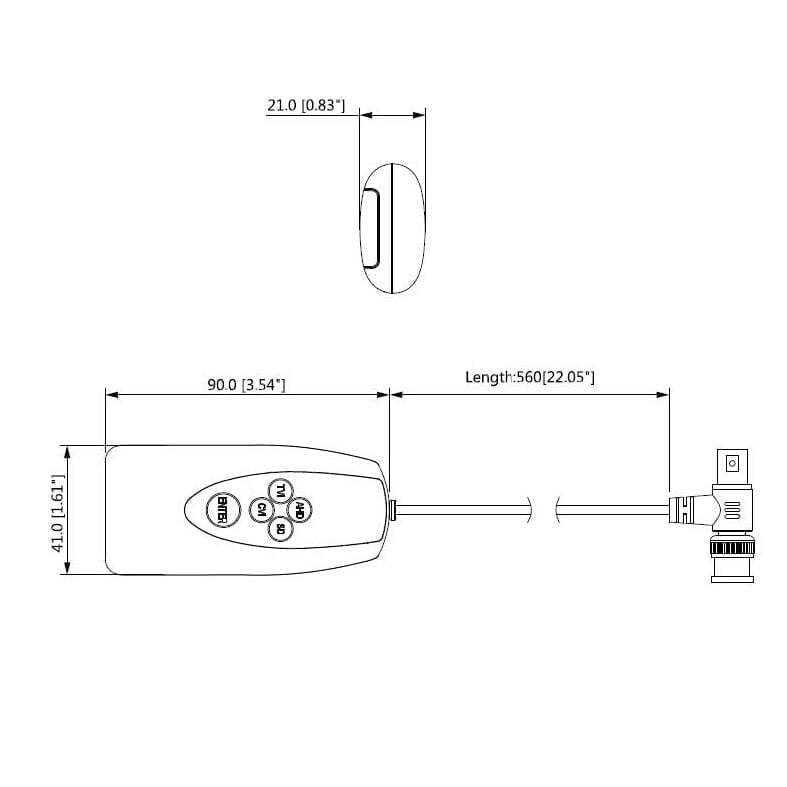

Cable Length	560mm
Dimensions	90 x 41 x 21mm
Material	Polycarbonate & ABS
Operating Environment	0? ~ 40? / RH95% (max)
Power Consumption	0.3W
Power Supply	2 x AAA battery
Supported Formats	HDCVI/TVI/AHD/Analogue
Weight	48g
Warranty (Years)	1

Shipping Weight and Dimensions includes product packaging

Width	77 mm
Height	34 mm
Depth	122 mm
Weight	0.08 kg

Download the brochure from the link below.

Brochure
