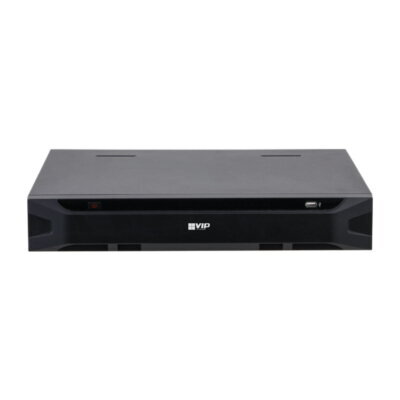

Ultra HD Network Video Decoder (6 x HDMI Out)

Original price was: $4,834.50.Current price is: $3,474.96.

(Guest - Inc. GST)
Register for Member Pricing

Ultra HD Network Video Decoder (6 x HDMI Out) – Surveillance Essentials > Display Accessories

Add to wishlist

SKU: NVD-A6 Categories: , , ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

The NVD-A6 is an IP video decoder that allows for configuration of up to 6 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.

Product features:
• Roaming decoder displays all video feeds on network
• Video wall splicing for up to 36 displays per monitor
• Split screen control with zoom/merge/roam/overlay
• Switch between standard & high definition streams
• Decode up to 8CH 4K, 32CH 1080p or 72CH 720p
• Support for audio, alarm, bi-directional talk, RS232, RS485
• Fisheye dewarp & multi-video split display
• Manage via web browser or VIP Vision™ SmartPSS

Specifications

System
Processor
Internal Processor
Operating System
Embedded Linux
Performance
Video Format
H.264 / H.265 / SVAC / MJPEG / MPEG2 / MPEG4
Audio Format
PCM / G.711 / AAC
Video Decoding Capacity (Separate)
Port 1, 2 & 3: 1CH@32MP (25fps) / 3CH@12MP (15fps) / 4CH@8MP / 16CH@1080P / 36CH@720P / 64CH@D1 Port 4, 5 & 6: 1CH@32MP(25fps) / 3CH@12MP (15fps) / 4CH@8MP / 16CH@1080P / 36CH@720P / 64CH@D1
Video Decoding Capacity (Total)
2CH@32MP (25fps) / 6CH@12MP (15fps) / 8CH@8MP / 32CH@1080P / 72CH@720P / 128CH@D1
Decoding Resolution
32MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / 960H / D1 / HD1 / 2CIF / CIF / QCIF
Video Frame Rate
PAL: 1~25fps / NTSC: 1~30fps

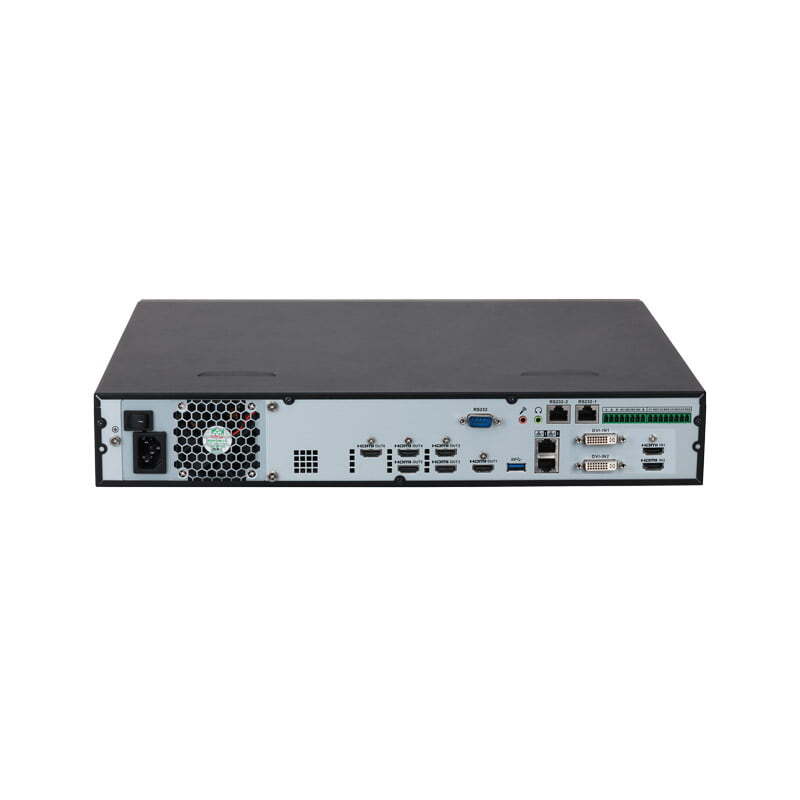

Video Input
2 x HDMI, 2 x DVI-I
Video Output
6 x HDMI
Collection Resolution
3840 x 2160 / 1920 x 1080 / 1600 x 1200 / 1680 x 1050 and lower
Display Resolution
3840 × 2160 / 2048 × 1152 / 1920 × 1200 / 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 (4 ports support 3840×2160, the remaining 2 ports support 2560 × 1600
Display Split
1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
Bi-directional Talk
1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10K?,2.0V / 16? out)
Alarm Input
4ch
Alarm Output
4ch relay out (30VDC 1A, 125VAC, 0.5A)
Communication Interface
2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485
Environment
Power Supply
100 ~ 240VAC, 50Hz-60Hz
Power Consumption
?70W
Operating Temperature
-10°C~+55°C, 10%~95%RH (86Kpa ~ 106Kpa)
Dimensions
440 x 408 x 70mm (1.5U)
Weight
4.83kg
Warranty (Years)
4



Register for Member Pricing

Technical Documents

Download documents from the following links:

NVD-A_Series_Product_Datasheet_PDF
