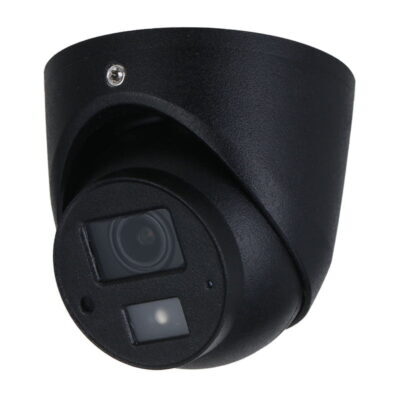

Mobile Series 1080p Fixed HDCVI Mini Dome
Sale!
Mobile Series 1080p Fixed HDCVI Mini Dome
Mobile Series 1080p Fixed HDCVI Mini Dome

Mobile Series 1080p Fixed HDCVI Mini Dome

Original price was: $90.09.Current price is: $78.33.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $19.58
Mobile Series 1080p Fixed HDCVI Mini Dome

Add to wishlist

SKU: VSCVIM-2DIR Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Every angle of your vehicle covered with the Securview VSCVI-2DIR. This camera delivers a wide field of view and 1080p Full HD video streaming, in a durable and compact shock-resistant housing. Ideal for vehicle interiors, eg. buses, taxis.

Camera features:

  • Streams Full HD 1080p/2.0MP (1920 x 1080)
  • Fixed 2.8mm lens; 101° viewing angle
  • Up to 500m HD video transmission over coax
  • Infrared illumination up to 20m
  • IP67 weather resistance
  • Built-in microphone on camera
  • Auto white balance & 2D noise reduction
  • Shock-resistant metal chassis & cable connectors

Specifications

General
Image Sensor
1/2.7” 2.0 Megapixel CMOS
Max. Resolution
1080p Full HD
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.8mm F2.0 Fixed Lens
Lens Type
Fixed
Angle of View
101° (H), 54° (V), 119° (D)
Focus
Fixed / 0.5m Min. Focus Distance
Minimum Illumination
0.02 Lux at F2.0 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25 ~ 1/100000s
Day/Night
Auto (ICR) / Manual
Infrared Range
20m
White Balance
Auto / Manual
Noise Reduction
2D
Gain Control
Auto
Lighting Compensation
BLC / HLC / DWDR
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
38.6m
Observe (63px/m)
15.4m
Recognise (125px/m)
7.7m
Identify (250px/m)
3.9m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
Built-in microphone
Alarm Interface
N/A
Video Output
1 x BNC HDCVI/CVBS/AHD/TVI switchable video output (aviation connector)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Mobile Series
Housing
Metal
Camera Type
Dome
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
<2.3W
Dimensions
Ø62 x 62mm
Weight
0.17kg
Operating Environment
-40° to 60°C / RH90% (max)
Warranty (Years)
4
Register for Member Pricing

Documents

Download documents from the following links:

Securview_M_Series_Mobile_Cameras_Datasheet_PDF
