Mobile Series 1080p Fixed HDCVI Twin Dash Camera
Sale!
Mobile Series 1080p Fixed HDCVI Twin Dash Camera
Mobile Series 1080p Fixed HDCVI Twin Dash Camera

Mobile Series 1080p Fixed HDCVI Twin Dash Camera

Original price was: $163.90.Current price is: $118.11.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $29.53
Mobile Series 1080p Fixed HDCVI Twin Dash Camera

Add to wishlist

SKU: VSCVIM-2TT Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

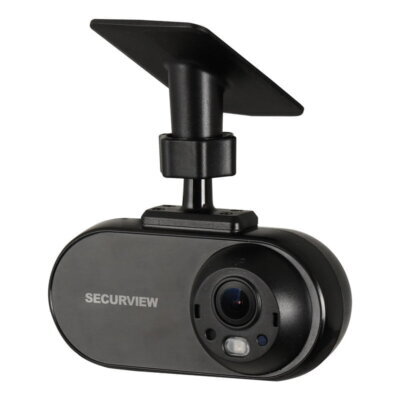

Designed for windscreen mounting, the VSCVIM-2TT is a dual lens camera capable of simultaneously recording Full HD evidence inside and outside the vehicle. Equipped with a built-in microphone and features durable shock resistant housing.

Camera features:

  • Stream 2.0MP / Full HD 1080p (1920 x 1080) at 25fps
  • Fixed lens – 109° external and 132° internal
  • Innovative dual-lens design records 2 images at once
  • HDCVI / AHD / TVI / Analog switchable
  • Smart in-vehicle infrared illumination up to 3m
  • Features built-in microphone for audio evidence
  • 4-in-1 aviation connector cable transmits power, audio, video & ground
  • Slimline design with shock resistant housing
  • Easy installation to the inside of the windscreen

DORI

Register for Member Pricing

Detect (25px/m)
43m (front), 36m (rear)

Observe (63px/m)
14.9m (front), 14.2m (rear)

Recognise (125px/m)
7.5m (front), 7.1m (rear)

Identify (250px/m)
3.7m (front), 3.5m (rear)

Specification

Alarm Interface
N/A

Analogue Support
N/A

Angle of View
Front: 109° (H), 58° (V), 127° (D) / Rear: 132° (H), 69° (V), 164° (D)

Audio Input
Built-in microphone

Camera Type
Vehicle

Day/Night
Front: Color / Rear: Auto (IRC)

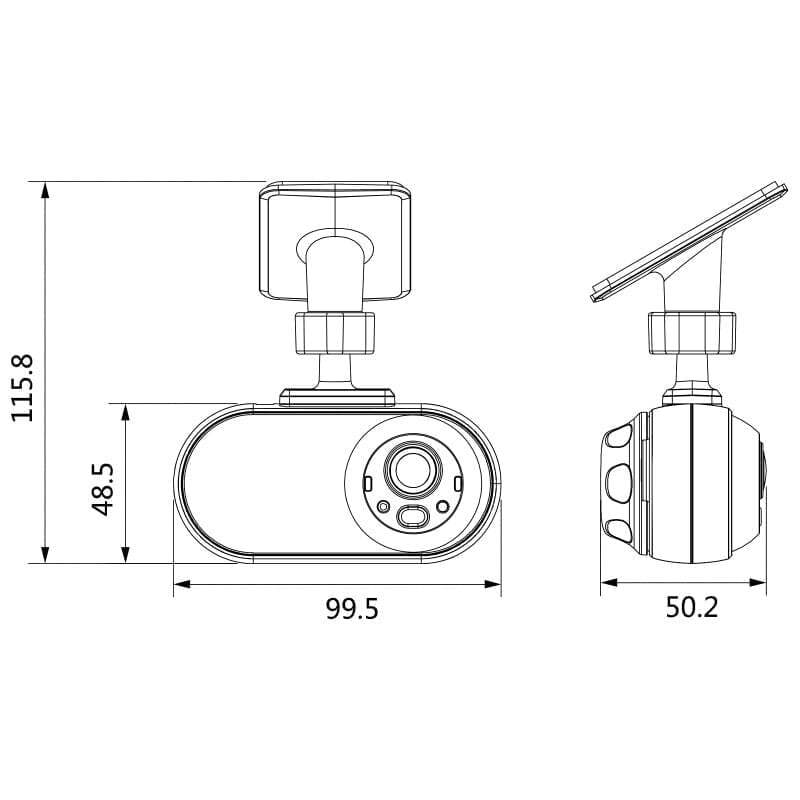

Dimensions
116 x 100 x 50mm

Effective Pixels
1920 (H) x 1080 (V)

Electronic Shutter
1/25 ~ 1/100,000s

Focus
Fixed

Frame Rate
25fps (1080p and lower)

Gain Control
Auto

Housing
Plastic

Image Sensor
1/2.7” 2.0 Megapixel CMOS

Infrared Range
Front: 3m Infrared / Rear: N/A

Ingress Protection
N/A

Lens
Front: 2.8mm F2.0 Fixed Lens / Rear: 2.1mm F2.0 Fixed Lens

Lens Type
Fixed

Lighting Compensation
BLC / HLC / Digital WDR

Max. Resolution
2.0 Megapixel

Minimum Illumination
0.02 Lux at F2.0 (Colour) / 0 Lux IR Active

Noise Reduction
2D

Operating Environment
-30° to 60°C / RH95% (max)

OSD Menu
Support

Power Consumption
<1.9W

Power Input
12VDC ±30%

Resolution
1080p (1920 x 1080)

Series
Mobile

Signal Noise Ratio
> 65dB

Synchronisation
N/A

Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available

Tri-Axis Mounting
No

Vandal Resistant
N/A

Video Output
2 x M12 HDCVI output (Yellow: front / Black: rear). Modes Supported – HDCVI, AHD, HDTVI & Composite. Mode Switching – OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)

Weight
0.17kg

White Balance
Auto / Manual



Register for Member Pricing

Documents

Download documents from the following links:

Securview VSCVIM-2TT Datasheet (PDF)

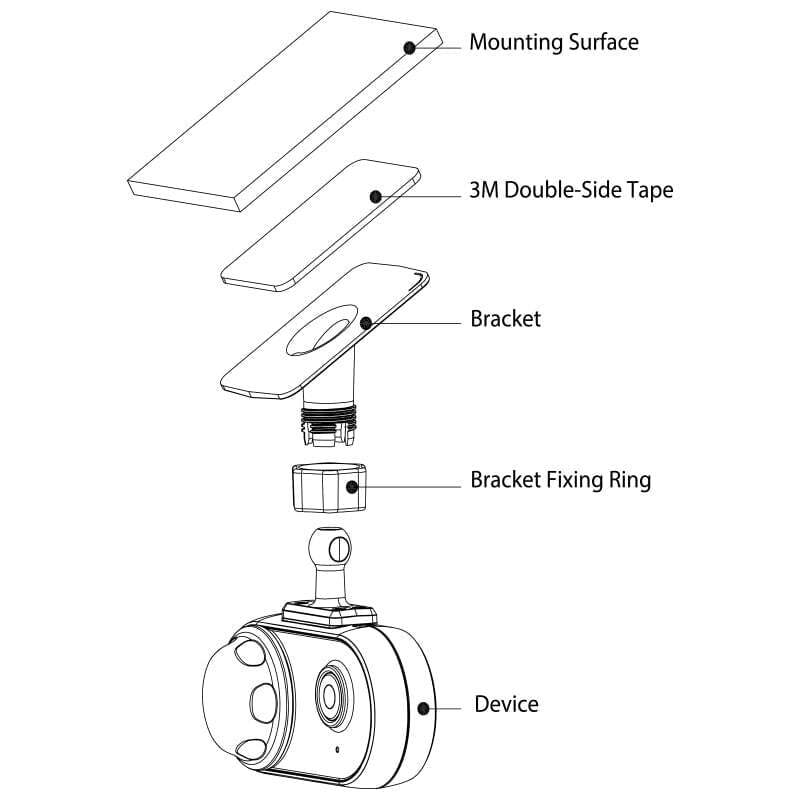

Securview VSCVIM-2TT Mounting Guide (PDF)
