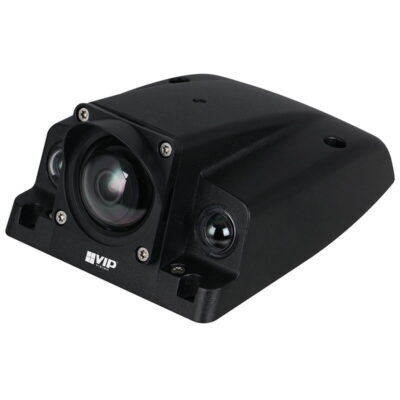

Mobile Series 4.0MP Heavy Duty Vehicle Camera
Sale!
Mobile Series 4.0MP Heavy Duty Vehicle Camera
Mobile Series 4.0MP Heavy Duty Vehicle Camera
Mobile Series 4.0MP Heavy Duty Vehicle Camera

Mobile Series 4.0MP Heavy Duty Vehicle Camera

Original price was: $549.00.Current price is: $474.71.

(Guest - Inc. GST)
Register for Member Pricing

4 Interest Free Payments of $118.68
Mobile Series 4.0MP Heavy Duty Vehicle Camera

Available on back-order

Add to wishlist

SKU: VSIP4MPEIRAT Category:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Designed for surveillance in buses, trains and other large vehicles, the VSIP4MPEIRAT delivers high quality footage with true WDR and back/highlight compensation, all in a highly durable casing resilient against water, dust and vandalism.

Camera features:
• Streams up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm F2.0 fixed lens with 104° viewing angle
• Smart infrared illumination up to 30m range
• Back/highlight compensation & true WDR (120dB)
• H.265 encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• MicroSD slot up to 128GB & Power over Ethernet
• Shock resistant housing withstands heavy vibration
• IP6K9K rated to withstand high pressure / steam jet spray and prevents dust and dirt egress

Specification

Alarm Interface
1 Input / 1 Output

Audio Interface
1 Input / 1 Output

Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type
Vehicle

Day/Night
Auto (IRC) / Colour / B&W

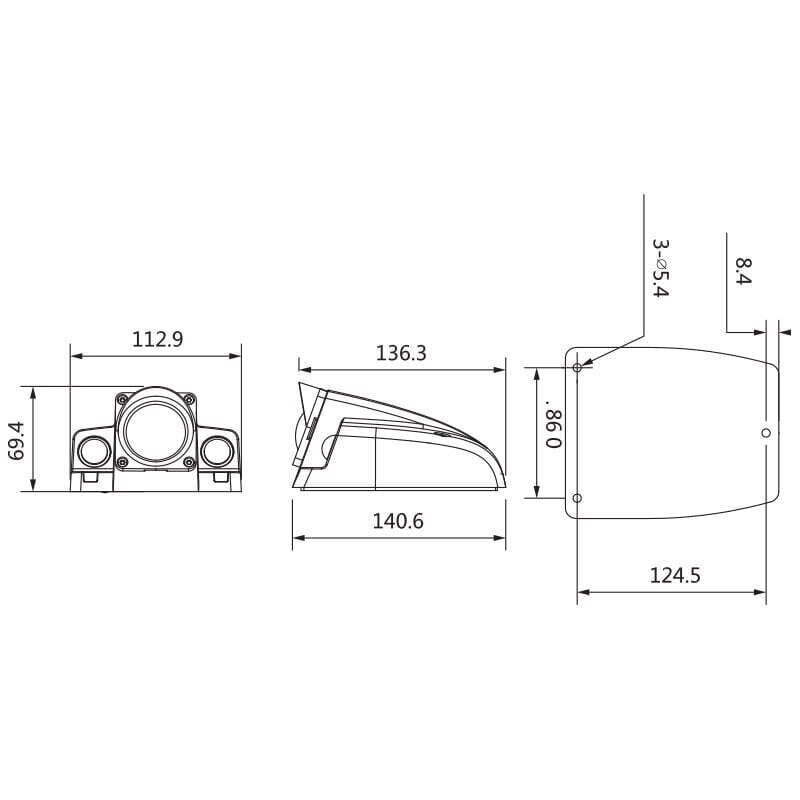

Dimensions
141 x 113 x 69mm

DORI Distance*
Detect: 56m
Observe: 22m
Recognise: 11m
Identify: 6m

Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC

Effective Pixels
2688 (H) x 1520 (V)

ePoE
No

Ethernet
RJ45 (10/100 Base-T)

Field of View
Horizontal: 104°, Vertical: 55°

Focus
Fixed

Frame Rate (Main)
4.0MP (1 ~ 25fps)

Frame Rate (Sub)
D1 (1 ~ 25fps)

Frame Rate (Third)
720p (1 ~ 25fps)

Gain Control
Auto / Manual

Housing
Metal

Image Sensor
1/3″ 4.0 Megapixel Progressive Scan CMOS

Infrared
Yes

Infrared System
2 x Infrared LED, 30m range, Auto/Manual on/off control

Ingress Protection
IP6K9K

Intelligent Functions
Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)

Interoperability
ONVIF / PSIA / CGI

IVS
Yes

Lens / Iris
2.8mm F2.0 Fixed Lens

Lens Type
Fixed

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. Resolution
4.0 Megapixel

Max. User Access
10 Users / 20 Users

Min Illumination
0.3 Lux at F2.0 (Colour) / 0 Lux at F2.0 (IR On)

Net Weight
0.59kg

Noise Reduction
3D DNR

Operating Conditions
-40° ~ +70° C / Less than 95% RH

Pan/Tilt/Rotation
N/A

Picture Control
N/A

Power Consumption
<6.5W

Power Supply
12VDC / PoE (802.3af)

Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

RAM / ROM
512MB / 32MB

Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)

RS485
N/A

S/N Ratio
> 50dB

Series
Mobile Series

Streaming Method
Unicast / Multicast

Tri-Axis Mounting
No

Ultra Low Light Colour
No

Vandal Resistance
IK10

Video Compression
H.265 / H.264

Video Interface
N/A

Weather Resistance
Yes

White Balance
Auto / Natural / Street Lamp / Outdoor / Manual

Register for Member Pricing

*DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)



Documents

Download documents from the following links:

IP Camera Web Interface User Manual V3 1.0.3
VIP_Vision_VSIP4MPEIRAT_Datasheet_PDF
