Professional 4 Channel Mobile NVR with GPS, 4G & WiFi

SKU: MNVR-GPS4GW2 Categories: ,
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

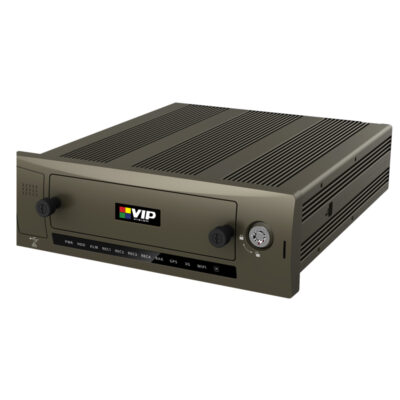

The VIP Vision™ MNVR-GPS4GW2 is a 4 channel mobile NVR which offers Full HD recording, GPS overlay, Power over Ethernet and 4G remote viewing, all in a robust chassis. It’s the ideal vehicle solution for monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.

Product features:
• 4 channel mobile NVR with built-in PoE ports
• Records up to Full HD 1080p (1920 x 1080)
• Combines video footage with GPS tracking overlay
• Lockable HDD & SD card slot for secure footage retrieval
• 2.5″ SATA bays up to 8TB, SD storage up to 128GB
• Robust housing; vibration-dampening construction
• Double DIN standard size for all models
• Backup via external USB device or local network
• 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)

Specification

Alarm Input/Output
8 channels input / 2 channels relay output

Audio Input/Output
1 channel input, 1 channel output

Auxiliary inputs
1 x RS232 / 1 x RS485

Backup Modes
USB Device / eSATA Device / Network

Bit Rate
H.264: 48 ~ 8192Kbps

Dimensions
190×229×110mm

DIN Size
2 DIN

Display Resolution
Configurable from 1920 x 1080 to 1024 x 768

Display Split
1/4

Ethernet
1 x RJ-45 port (10/100/1000M)

GPS Functions
Built-in high precision GPS module / Overlay: car number, time, position, speed

HDD Modes
Single (no RAID compatibility)

Internal HDD
2 x 2.5’’ SATA ports, up to 8TB / 1 x SD card slot, up to 128GB

Interoperability
ONVIF 2.3 conformant

Main Processor
Embedded Processor

Max. Recording Bandwidth
200Mbps

Max. User Access
128 users

Maximum Resolution
Configurable from 1080p (1920 x 1080) to D1 (704 x 576)

Network Functions
HTTP, IPv4, TCP/IP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter

Operating Environment
-30 ~ +60°C / 0~90%RH

Operating System
Embedded Linux

OSD
Camera title, Time, Video loss, Camera lock, Motion detection

Playback Sync
1/4

Power Consumption
< 15W (without HDD)

Power Over Ethernet
4 ports (IEEE802.3af)

Power Supply
6 ~ 36VDC

Record Interval
1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s

Record Modes
Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop

Recording Rate
200Mbps

Remote View
iOS (iPhone, iPad); Android devices, Windows Phone

Search Modes
Time/Date, Alarm, By Motion, Exact search, Smart search

Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer

Two-Way Talk
1 channel input, 1 channel output (aviation connector), RCA

USB Interface
3 ports: 2 x USB3.0 (front), 1 x USB2.0 (rear)

Video Compression
H.264

Video Detection
Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering

Video Input
4 channels

Video Output
1 x HDMI, 1 x VGA, 2 x TV

Weight
3.0kg (without HDD)

Warranty (years)
4

Register for Member Pricing



Download documents from the following links:

Mobile_NVR_Series_Datasheet_PDF (1)

Mobile Vehicle Recorder Reversing Indicator Setup Guide (PDF)

Register for Member Pricing

Mobile NVR Series Quick Start Guide V1.0.0.pdf (1)

Mobile NVR Series User Manual (PDF)

Mobile NVR Series Installation Manual (PDF)
