Description

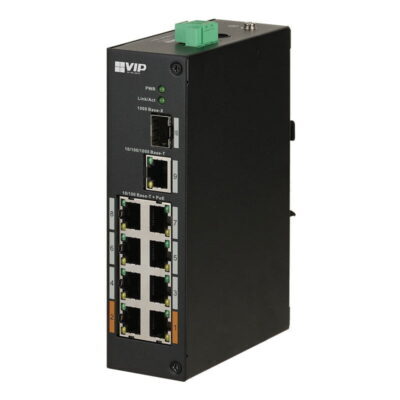

The VSPOE-SW8H is a DIN rail mountable, fast PoE switch in 8 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
Product features:
• 8 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 96W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure
Specifications
| Warranty (Years) | 4 |
| Dimensions | 150 x 100 x 42mm |
| Ethernet Ports | 1 x 1000 Base-X / 1 x 10/100/1000 Base-T / 8 x 10/100 Base-T (PoE power supply ports) |
| Exchange Mode | Store & forward |
| Operating Environment | -30° ~ 65°C / RH90% (max) |
| PoE Protocol | IEEE802.3af / IEEE802.3at |
| Power Consumption | Per port: up to 30W / Total: up to 93W |
| Remote Management | N/A |
| Weight | 0.54kg |
Please submit your product questions below:
hbspt.forms.create({
portalId: "6765794",
formId: "5050b471-53a5-43f2-9ad0-9eff3d4ace4a"
});
8-port Unmanaged Fast Hi-PoE Ethernet Switch
$218.65Original price was: $218.65.$168.30Current price is: $168.30.This is an unmanaged industrial 8 port PoE switch with Gigabit uplink and SFP port.
Description
The VSPOE-SW8H is a DIN rail mountable, fast PoE switch in 8 ports. It is ideal for building secondary networks – providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
Product features:
• 8 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 96W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure
Specifications
Download the brochure from the link below.
VIP_Vision_VSPOE-SWH_Datasheet_PDF
