Pro Series 2MP 30x Zoom PTZ Pos Cam with GPS, 4G & WiFi
Sale!
Pro Series 2MP 30x Zoom PTZ Pos Cam with GPS, 4G & WiFi

Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi

Original price was: $11,535.00.Current price is: $9,195.03.

Register for Member Pricing

Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi

SKU: VSIPMPTZ-2G Categories: , Tag:
Free Shipping for orders over $600 (AU Only)*
Brand:

Description

Featuring a powerful optical zoom, accurate pan/tilt/zoom performance and flexible network support including 3G/4G and WiFi, the VSIPMPTZ-2G is an all-in-one solution for capturing long distance video surveillance in any setting.

Camera features:

  • Stream up to 2.0MP (1920 x 1080) at 50fps
  • 30x optical zoom lens (61.2 ~ 2.4° viewing angles)
  • Auto tracking, 360° panning, -20° ~ 90° tilt adjustable
  • Low light colour performance at 0.004lx; 100m IR
  • 3G/4G, WiFi and wired networking options
  • Built-in GPS tracking
  • Anti-vibration for image stability
  • Built-in OLED with status display
  • MicroSD slot for recording at the edge up to 128GB
  • WDR, 2D/3D DNR; auto white balance; true day/night
  • Soft magnetic composite base for flexible mounting
  • Power via 24VDC (PSU included)
  • IP66 weather resistant metal housing

Specification

Register for Member Pricing

Alarm Interface
2 Inputs

Anti-Shake DSP
Support

Audio Interface
1 Input / Compression: PCM, G.711a, G.711u

Auto Tracking
Support

Battery
10.05Ah / 109.45Wh (9 hours from full charge at lowest power consumption)

Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)

Camera Type
PTZ Positioning

Day/Night
Auto (ICR) / Color / B&W

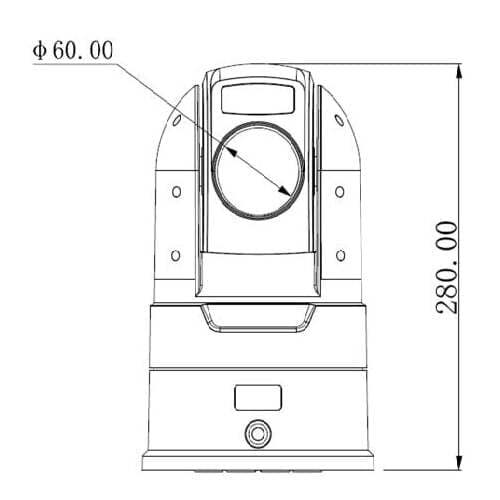

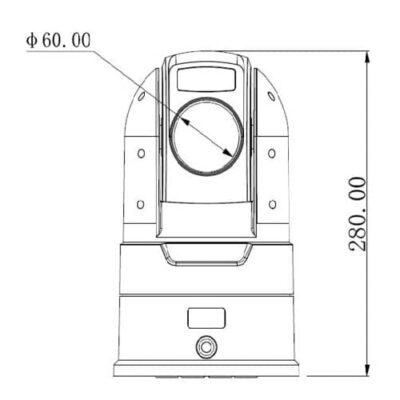

Dimensions
Ø171mm x 280mm

Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC

Effective Pixels
1920 (H) x 1080 (V)

ePoE
No

Ethernet
RJ-45 (10/100Base-T)

External Interface
14-Core Aviation Connector (1: RJ45 Network Cable, 2: ?5.5*2.1mm Power Port, 3: GPS Port, 4: RS232), 8-Core Aviation Connector (optional) (1: Alarm Input, 2: Audio Input, 3: 12V Controllable Power (Alarm) Input, 4: RS485)

Field of View
Horizontal: 61.2° ~ 2.3° (30x Optical Zoom)

Focus
Auto/ Semiautomatic/ Manual

Frame Rate (Main)
1080p (1 ~ 50fps)

Frame Rate (Sub)
D1 (1 ~ 25fps)

Frame Rate (Third)
1080p (1 ~ 25fps)

Gain Control
Auto / Manual

Housing
Metal

Image Sensor
1/1.9″ 2.0MP CMOS

Infrared
Yes

Infrared System
4 x Infrared LED, 100m range, Auto/manual on/off control

Ingress Protection
IP66

Intelligent Functions
Motion Detection

Interoperability
ONVIF / PSIA / CGI

IVS
No

Lens / Iris
6 ~ 180mm Motorised Lens

Lens Type
Motorised Varifocal

Lighting Compensation
BLC / HLC / WDR (120dB)

Max. Resolution
2.0 Megapixel

Max. User Access
10 Users / 20 Users

Min Illumination
0.004 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)

Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan

Net Weight
4.87kg

Noise Reduction
2D/3D DNR

Operating Conditions
-20° ~ +5° C / Less than 90% RH

Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°

Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 15° ~ 90° ; Rotation: 0° ~ 360°

Picture Control
Horizontal: 0° ~ 360° Vertical: -20° ~ 90°

Power Consumption
<20W (IR off: <24W, IR on: <40W , Motor IR on: <56W)

Power Supply
24VDC (6~36V)

Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

PTZ Speed
Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s

Resolution
1080p (1920 x 1080) to CIF (352 x 288)

RS485
Yes

RTMP Support
No

S/N Ratio
>54dB

Series
Professional Series

Start-up Action
Auto-restore to previous PTZ/lens status

Streaming Method
Unicast / Multicast

Tri-Axis Mounting
No

Ultra Low Light Colour
Yes

Vandal Resistance
N/A

Video Compression
H.265 / H.264

Weather Resistance
Yes

White Balance
Auto / ATW / Indoor / Outdoor / Manual

Warranty
4 Years

Download the documents from the links below.

 Brochure

 Quick Start Guide

Register for Member Pricing

 User Manual
